Homogenize for representative N4 in slices of parameter space

import planarfibers
import matplotlib.pyplot as plt
import pandas as pd
import vofotensors
from vofotensors.abc import la1, d1, d8
import sympy as sp
import numpy as np

pd.set_option("display.max_columns", 100)
pd.set_option("display.width", 1000)

# User input
SCALE_HOMOGENEOUS = False
key_quantity = "E_modulus"
homogenization_function = planarfibers.approximation.calc_MTOA
la1_values = ["3 / 6", "4 / 6", "5 / 6"]

# Get points on views
df = planarfibers.discretization.get_points_on_slices(
    radii=["0", "1/2", "9/10"],
    la1s=list(map(eval, la1_values)) + ["1"],
    numeric=True,
)

# Get fiber orientation tensors
parameterizations = vofotensors.fabric_tensors.N4s_parametric
parameterization = parameterizations["planar"]["la1_d1_d8"]
N4_func = sp.lambdify([la1, d1, d8], parameterization)
df["N4"] = df.apply(
    lambda row: N4_func(la1=row["la1"], d1=row["d_1"], d8=row["d_8"]), axis=1
)

# Define angle discretization
angles = np.linspace(0, 2 * np.pi, 120)

# Homogenize
df["stiffness"] = df.apply(
    lambda row: homogenization_function(N4=row["N4"], inp=None),
    axis=1,
)

# Define helper func to explicitly select either Youngs or generalized compression mod.
def get_Youngs_modulus(stiffness, angles):
    projector = planarfibers.utils.PlanarStiffnesProjector()
    E, K = projector.get_planar_E_K(stiffness=stiffness, angles=angles)
    if key_quantity == "E_modulus":
        return E
    elif key_quantity == "K_modulus":
        return K

# Get Youngs-Modulus for direction in plane
df[key_quantity] = df.apply(
    lambda row: get_Youngs_modulus(stiffness=row["stiffness"], angles=angles),
    axis=1,
)

# Define layout
la1_key_extensions = {f"-la1-{index}": value for index, value in enumerate(la1_values)}
# la1_key_extensions = {
# "-la1-0": "3 / 6",
# "-la1-1": "4 / 6",
# "-la1-2": "5 / 6",
# }
grid_indices = {
    "vshc-central": (2, 0),
    "vshc-m90-0": (3, 0),
    "vshc-m90-1": (4, 0),
    "vshc-m45-0": (3, 1),
    "vshc-m45-1": (4, 2),
    "vshc-0-0": (2, 1),
    "vshc-0-1": (2, 2),
    "vshc-45-0": (1, 1),
    "vshc-45-1": (0, 2),
    "vshc-90-0": (1, 0),
    "vshc-90-1": (0, 0),
}
legend_axis_indices = (4, 1)
empty_axes_indices = [(0, 1), (1, 2), (3, 2), legend_axis_indices]

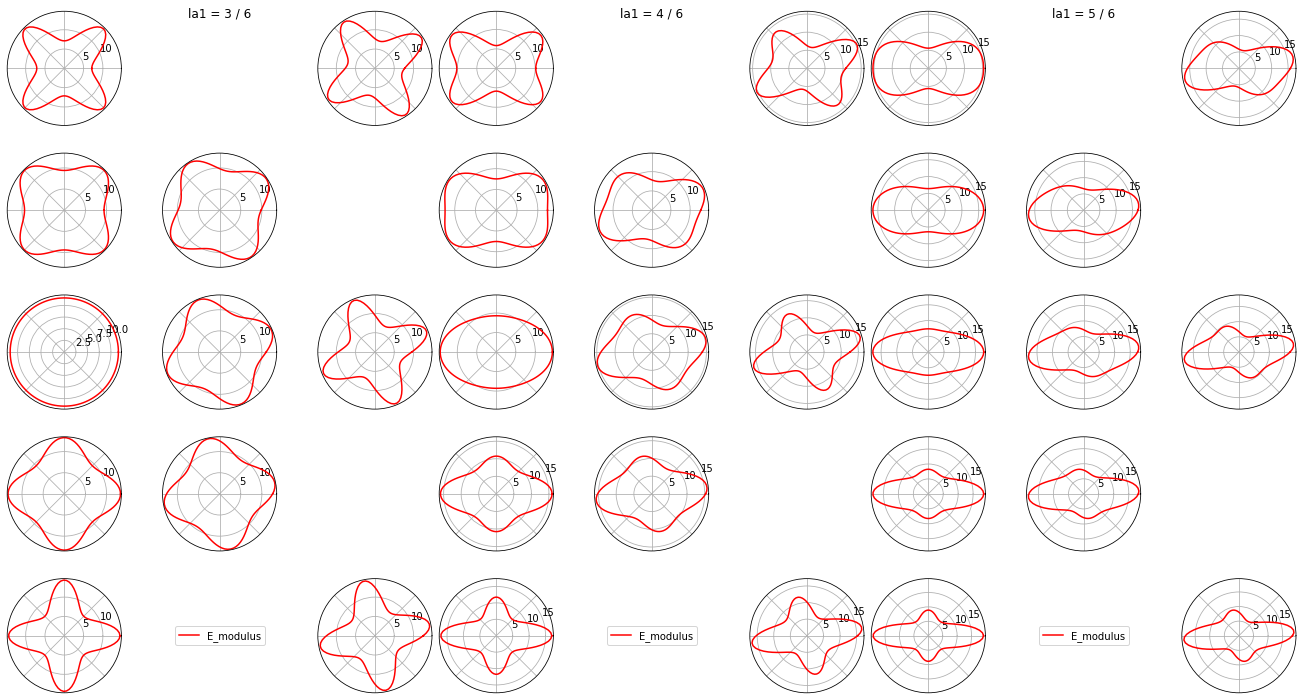

# Plot first view
nbr_slices = len(la1_key_extensions)
fig = plt.figure(figsize=(6 * nbr_slices, 10))
subfigs = fig.subfigures(1, nbr_slices, wspace=0.0)
for index, (key_extension, la1val) in enumerate(la1_key_extensions.items()):
    subfig = subfigs[index]
    subfig.suptitle(f"la1 = {la1val}")
    axs = subfig.subplots(ncols=3, nrows=5, subplot_kw={"projection": "polar"})
    lines = []  # Initialize legend lines
    for key_N4_start, grid_index in grid_indices.items():
        ax = axs[grid_index]
        key = key_N4_start + key_extension

        ax.plot(angles, df.loc[key][key_quantity], label=key_quantity, color="red")

        # Update legend if something has been plotted
        lines_tmp, labels_tmp = ax.get_legend_handles_labels()
        if len(lines_tmp) > len(lines):
            lines, labels = lines_tmp, labels_tmp

    for ax in axs.flatten():
        ax.set_xticklabels([])
        if SCALE_HOMOGENEOUS:
            ax.set_ylim(
                bottom=0,
                top=1.2,
            )
            ax.set_yticks([0, 0.5, 1])

    legend_axis = axs[legend_axis_indices]
    legend_axis.legend(lines, labels, loc="center")

    for indice in empty_axes_indices:
        ax = axs[indice]
        ax.axis("off")
fig.tight_layout()

# Define layout second view
grid_indices = {
    "v00-upper-0": (0, 0),
    "v00-upper-1": (0, 1),
    "v00-upper-2": (0, 2),
    #
    "v00-mid-0": (1, 0),
    "v00-mid-1": (1, 1),
    "v00-mid-2": (1, 2),
    #
    "v00-lower-0": (2, 0),
    "v00-lower-1": (2, 1),
    "v00-lower-2": (2, 2),
    #
    "v00-mid-3": (1, 3),
    #
}
legend_axis_indices = (0, 3)
empty_axes_indices = [(2, 3), legend_axis_indices]

# Plot second dview

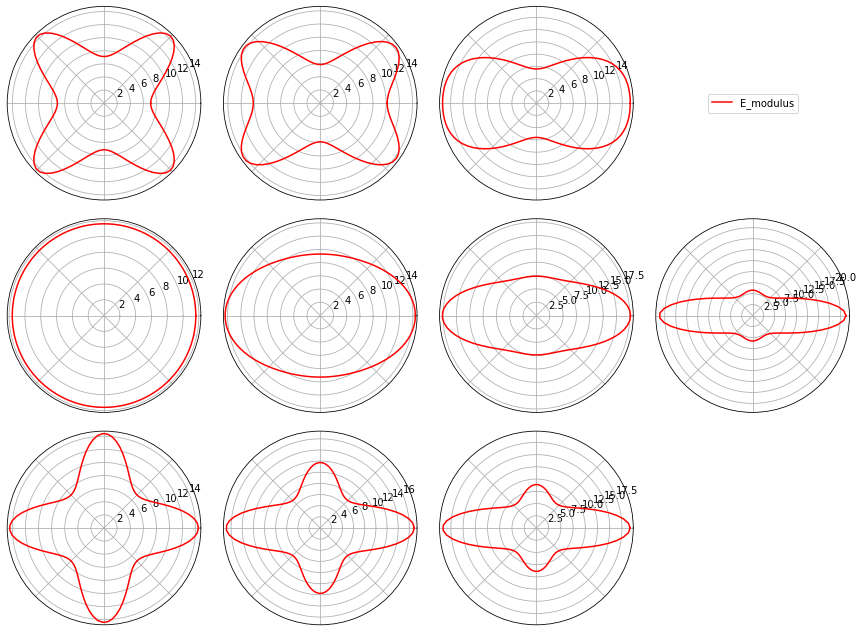

fig, axs = plt.subplots(
    figsize=(12, 9), ncols=4, nrows=3, subplot_kw={"projection": "polar"}
)
lines = []  # Initialize legend lines
for key_N4_start, grid_index in grid_indices.items():
    ax = axs[grid_index]
    key = key_N4_start

    ax.plot(angles, df.loc[key][key_quantity], label=key_quantity, color="red")

    # Update legend if something has been plotted
    lines_tmp, labels_tmp = ax.get_legend_handles_labels()
    if len(lines_tmp) > len(lines):
        lines, labels = lines_tmp, labels_tmp
for ax in axs.flatten():
    ax.set_xticklabels([])
    if SCALE_HOMOGENEOUS:
        ax.set_ylim(
            bottom=0,
            top=1.2,
        )
        ax.set_yticks([0, 0.5, 1])
legend_axis = axs[legend_axis_indices]
legend_axis.legend(lines, labels, loc="center")
for indice in empty_axes_indices:
    ax = axs[indice]
    ax.axis("off")
fig.tight_layout()

plt.show()
